Wireless digital reversing camera
Wireless digital reversing camera
Wireless digital reversing camera

Wireless digital reversing camera

£117.30
(Inc. 20% VAT)
(£97.75 Exc. VAT)
In stock
+
Weight
600 g
Introduction to product

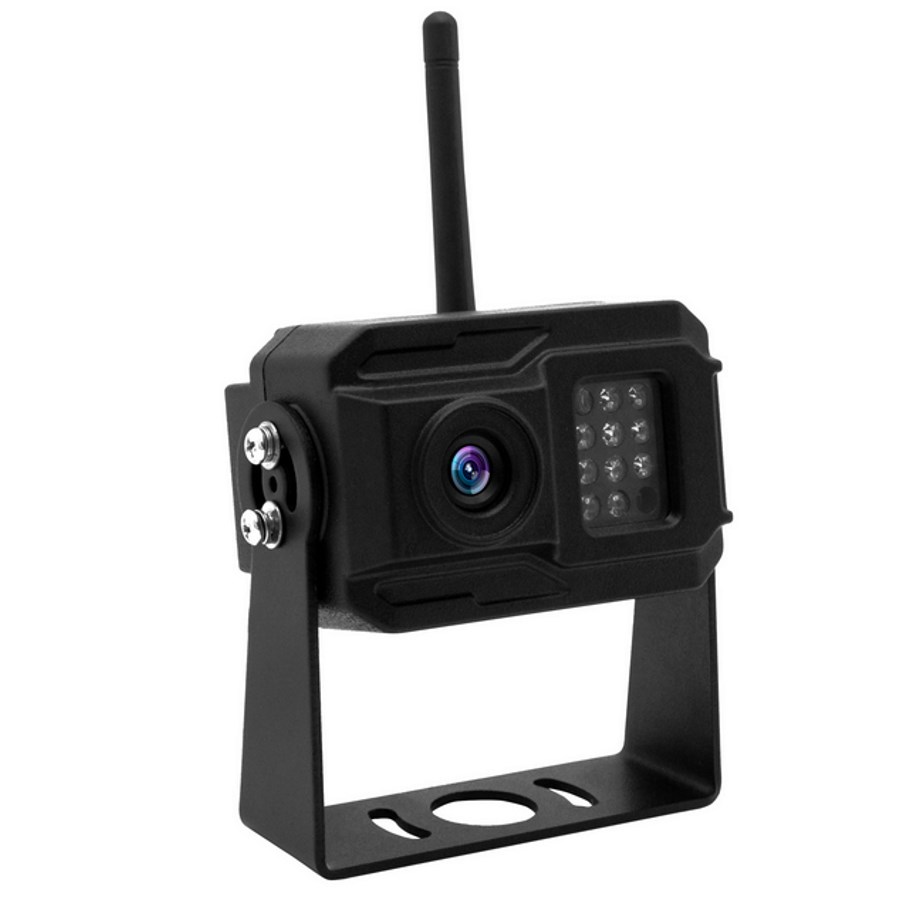

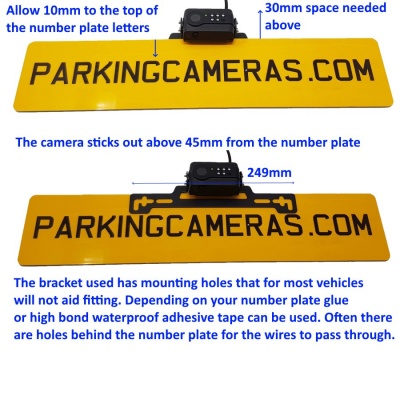

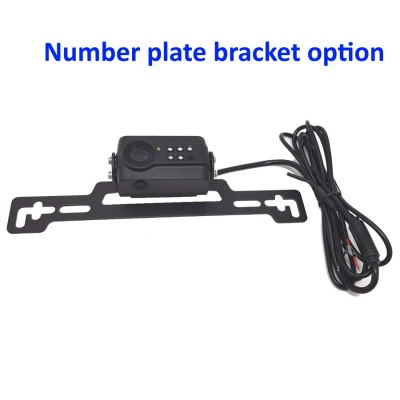

This wireless reversing camera works with out 60m range of wireless rear view monitors. It has 2 mounting options and is designed to be used as a reversing camera or a rear view camera. It has a choice of a standard U-style bracket or on designed to slot behind the number plate. It uses a modern 700 TVL CMOS sensor and has high power IR LEDs to enhance the night vision. From our experience the number plate mounting bracket will only work with a limited range of numbers plates. This is due to the clearance between the camera and any cowling above it. We have put on approximate dimensions for the clearance you need. The camera can be rotated 180 degrees in its bracket and mounted below the number plate.

PLEASE NOTE THIS WILL ONLY WORK WITH OUR RANGE OF 60m REARVIEW MONITOR or RECEIVERS.

Camera Specification
  • Sensor:-1/3" CMOS
  • Effective pixel rating:- 512 x 492 pixels
  • Sync system 700 TVL
  • Minimum illumination:- 0.1 LUX
  • Working current:- 260 mA
  • Lens F-3.6mm
  • Viewing angle:- 110 degrees
  • Waterproof rating:- Ip69K
  • Power consumption:- about 3.5 watts with IR on
  • Power input:- DC12 - 32 Volts
  • Operating temperature:- -20 to 70 degrees C
  • Frequency:- 2400 - 24835 MHz
  • Transmission type:- Digital wireless
  • Transmission distance:- 60 or 100m depending on model
  • S/N ratio:- More than 48 dB
  • White Balance:- Auto
  • IR Control:- Auto
Model
WC6560
