Digital wireless reversing camera
Digital wireless reversing camera

Digital wireless reversing camera

£115.80
(Inc. 20% VAT)
(£96.50 Exc. VAT)
+
Weight
600 g
Introduction to product

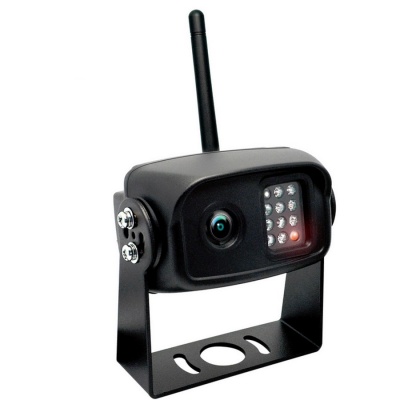

This wireless reversing camera comes in a choice between the 60m version or the 100m. It gives a good colour image and has IR LEDs to aid the night vision. The camera must be matched to the correct monitor as they will only work with the same range of monitor. The camera has a quoted camera angle of 120 degrees. It is dual 12 or 24V using around 260mA maximum current.

Camera Specification
  • Sensor:-1/3" Sharp CCD
  • Effective pixel rating:- 512 x 492 pixels
  • Sync system 700 TVL
  • Minimum illumination:- 0.1 LUX
  • Working current:- 260 mA
  • Lens F-3.6mm
  • Viewing angle:- 110 degrees
  • Waterproof rating:- Ip69K
  • Power consumption:- about 3.3 watts with IR on
  • Power input:- DC12 - 32 Volts
  • Operating temperature:- -20 to 70 degrees C
  • Frequency:- 2400 - 24835 MHz
  • Transmission type:- Digital wireless
  • Transmission distance:- 60 or 100m depending on model
  • S/N ratio:- More than 48 dB
  • White Balance:- Auto
  • IR Control:- Auto
Model
CAM6260
Voltage
12/24 volt
TVL
600 TVL
Type of sensor
CCD
Sensor manufacturer
Sharp
Sensor size
1/3" sensor
Camera angle
120 degrees
