5 inch digital wireless suction mount monitor

£133.50
(Inc. 20% VAT)
(£111.25 Exc. VAT)
In stock
+
Weight
900 g
Introduction to product

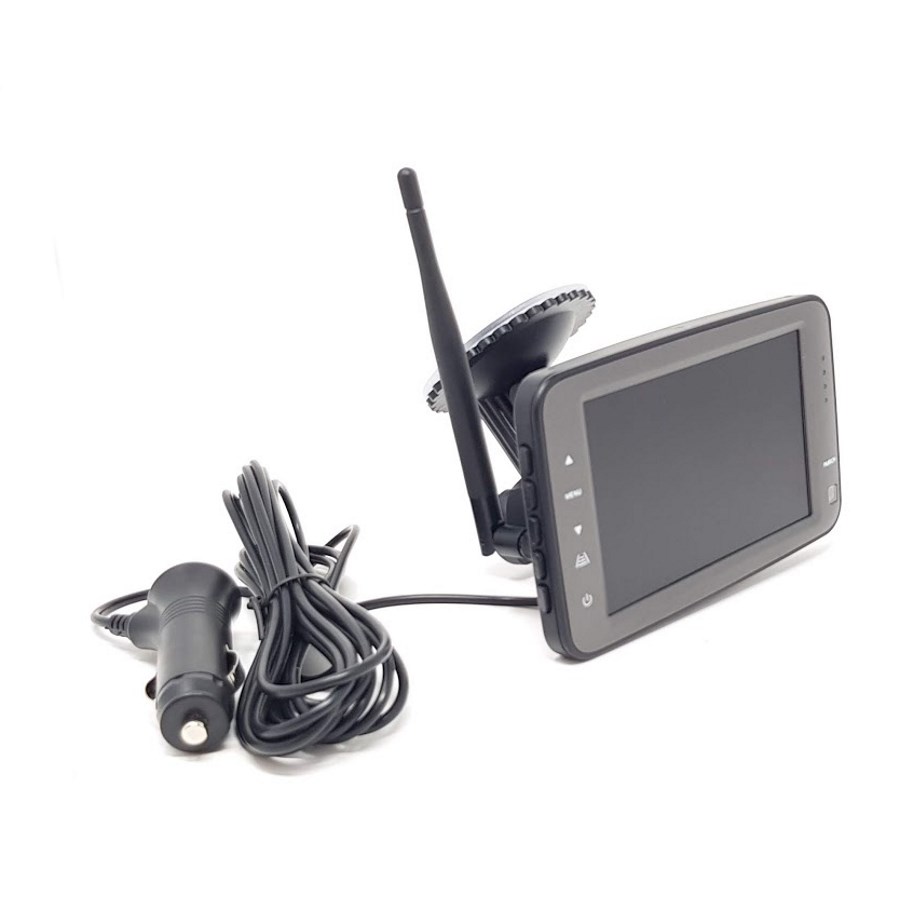

This is a 5" suction mount monitor designed to be used with our 60m range cameras and transmitters. It will accept just one camera and we can supply either with a suction mount or a metal stand to go on the dash. As with all digital wireless equipment it is interfence free and will operate over a much greater distance than analogue wireless. It is a colour monitor designed to run at 12 - 32V from a cigarette lighter plug which is supplied. These are ideal to use with a car towing a caravan or trailer.

Monitor Specification
  • Panel size:- 5 inch
  • Video system:- PAL/NTSC auto
  • Resolution:- 800 x 3 (RGB) x 600
  • Brightness:- 500 cd/m2
  • Contrast ratio:- 500:1
  • Screen mode:- 16:9
  • Field of view:- Top 50 degrees, bottom 70 degrees, L/R 70 degrees
  • Dot pitch:- 0.077 (W) x 0.231 (H)mm
  • Power input:- 9 - 32 Volts
  • Power consumption:- About 4 W
  • Transmission type:- Digital wireless
  • Video input:- i channel or 4 channel depending on model
  • Transmission distance:- Works with 100m version of reversing cameras
Model
WM560
