Iveco Daily brake light camera 2011-2014
Iveco Daily brake light camera 2011-2014

Iveco Daily brake light camera 2011-2014

£90.00
(Inc. 20% VAT)
(£75.00 Exc. VAT)
In stock
+
Weight
400 g
Introduction to product

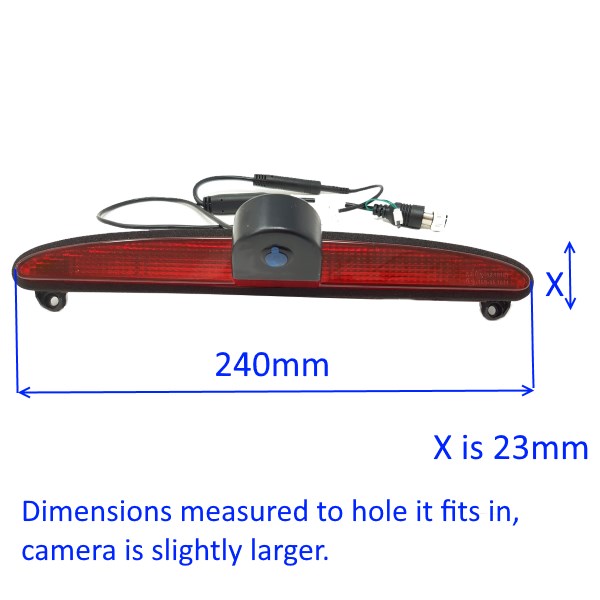

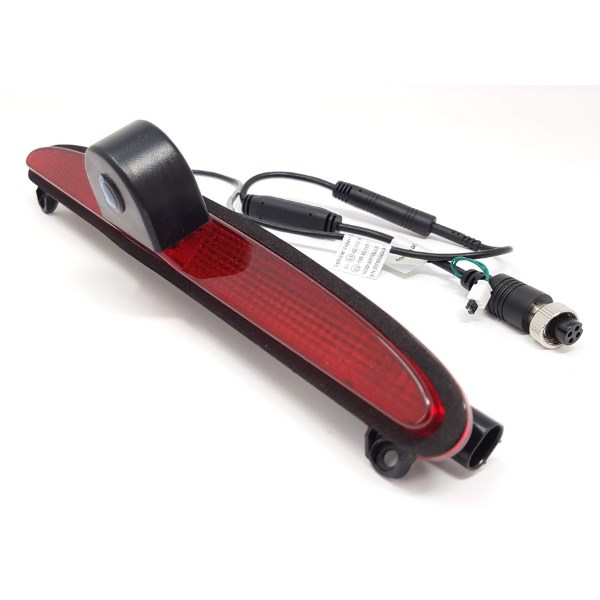

This brake light camera fits the Iveco Daily from 2011 to 2014. It uses a 700 TVL CMOS sensor giving a 170 degree camera angle. Although described as fitting from 2011 to 2014 it does fit the same size hole later models use for their high level brake lights. Even the holes for the screws to attach it line up. Why it is not advertised as being suitable for 2014 onwards we are unsure, but it is likely to be something to do with the connector for the brake light LEDs. This camera uses our standard 4 pin aviation style connector.

The camera is supplied without cables or adaptors. If you need these they can be selected using the drop down menus above.

Specification of camera

Image Type

1/3" CMOS

Night vision

7 IR LEDs

TV System

NTSC/PAL

Lens Angle (Deg.)

170 degree

IP Rating

IP69K

Vibration Rate

10G

Connector

1M 4P BMW to 4P lock connector

Effective Pixels

N: 510×492 pixels P: 500×582 pixels

Horizontal Resolution

700TVL

B.L.C

Back light Compensation (Auto)

White Balance

Auto White Balance (Auto)

Minimum Illumination

0Lux (LED ON)

S/N Ratio

≥48dB

Electronic Shutter

1/60~1/100,000 Sec

Power consumption

<3W

Built-in Lens

f: 2.8mm

Power Consumption

DC 12V (+/-10%)

Audio

without

Operation Temperature

-30℃~+70℃.RH95% Max

Storage Temperature

-40℃~+80℃.RH95% Max

Certificate

FCC,CE, E-mark,ISO9001, RoHS

Model
CAM4000
Bar Code
5060342252746
