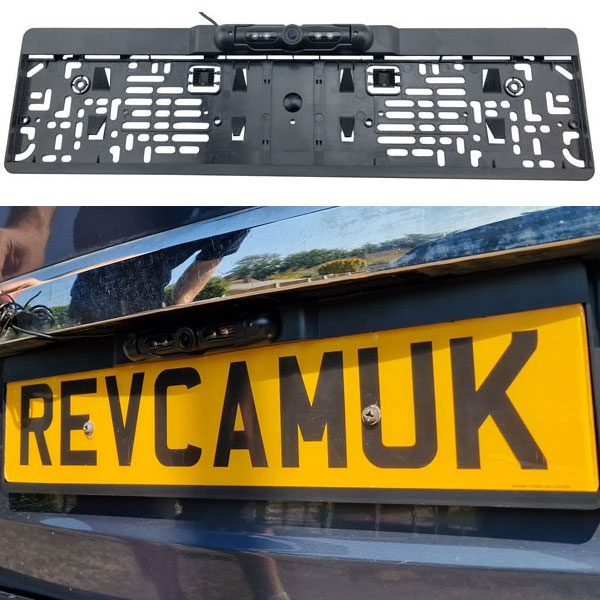

700 TVL number plate frame camera

700 TVL number plate frame camera

£96.00
(Inc. 20% VAT)
(£80.00 Exc. VAT)
In stock
–
+
Weight
800 g
Introduction to product

This is a 600TVL version of the CAM104. Previously the CAM104 used a Sharp 600 TVL CCD sensor, but these are being discontinued. The new 600TVL sensor gives as good a picture as the Sharp CCD and is a little cheaper. We are still using the same factory to produce these and their reliability over time has been exceptional.

Specification of camera
  • TV system :- PAL
  • Effective pixels :- 960 (H) x 480 (V)
  • Resolution :- 600 TVL
  • Minimum illumination :- 0.0 LUX (infrared LEDs on)
  • Video output :- 1.9Vp-p, 75 Ohms
  • Gamma consumpton:- 0.45
  • AGC:- On
  • Signal to noise ratio :- better than 43.6 dB
  • Electronic shutter :- 1/50 - 10000 auto
  • Baclight compensation :- Auto
  • Power supply :- 12V / 160mA
  • Lens angle :- 150 degrees
  • Operating temperature ;_ -30 degrees C to 70 degrees C
  • Connector :- 4 pin aviation
Model
CAM104V2
Voltage
12 volt
Connector type
4 pin aviation
TVL
600 TVL
Camera angle
150 degrees
