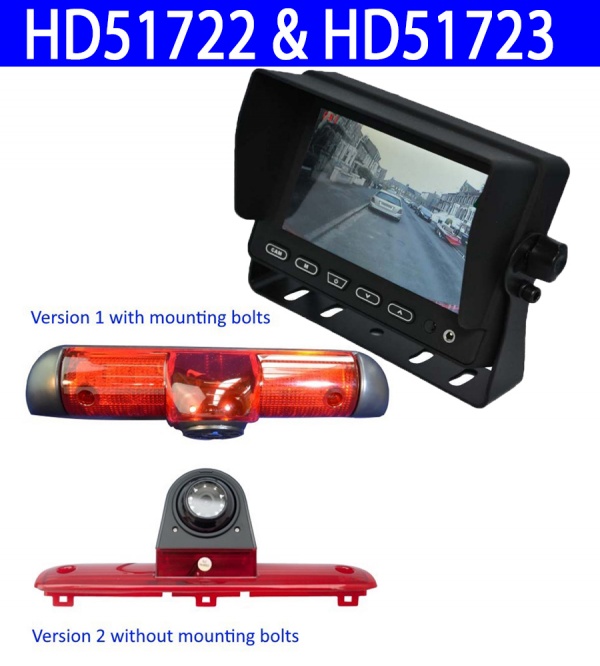

This matches a 700TVL Fiat Ducato brake light reversing camera to our popular MON5001 stand on dash colour rear view monitor. The 5 inch rear view monitor gives a good clear picture. The reversing camera replaces the existing brake light so no holes need to be drilled. It has a wide angle to give a view across the rear on the vehicle. It can be wired in to come on automatically the reverse gear is selected.
This camera is also compatible with the Citroen Relay (2006+), Peugeot Boxer (2006+) and Vauxhall Movano (2022+)
We have both versions of this camera. Version 1 attaches by bolts fastened from the back. Version 2 uses screws that fasten from the front. See the listing for the camera for more details.
On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.
5m 7.5m 10m 12.5m 15m 20m
These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.
10M 8mm link, 12.5M 8mm link, 15M 8mm link
These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.
Lighter plug
A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.
Bailey adaptor
We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.
Stand style bracket
This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.
Easy wire fuse tap a.k.a "piggyback fuse holders"
These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring. We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.
