Vauxhall Vivaro, Renault Traffic Brake Light Reversing Camera
Vauxhall Vivaro, Renault Traffic Brake Light Reversing Camera

Vauxhall Vivaro, Renault Traffic Brake Light Reversing Camera

£90.00
(Inc. 20% VAT)
(£75.00 Exc. VAT)
In stock
+
Weight
800 g
Introduction to product

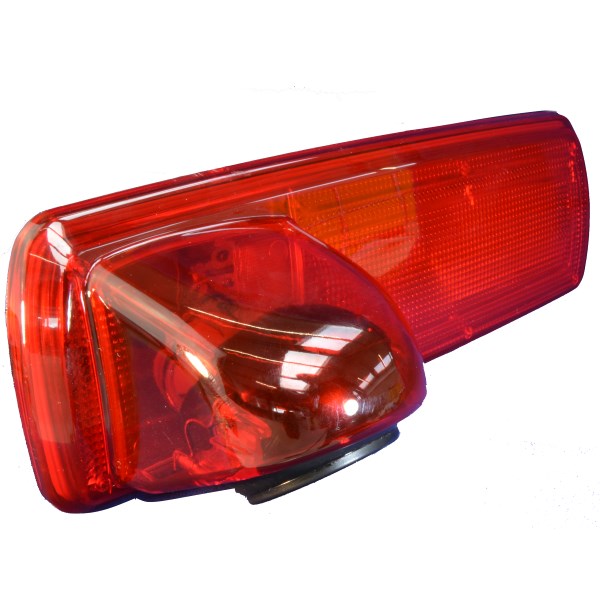

This brake light camera is for the Vauxhall Vivaro (2014 up to 2019) and Renault Traffic from 2014 onwards - replaces part number 93867977. Brake light cameras are very popular partly due to the ease of fitting and the factory fit appearance. The camera uses a modern 700TVL CMOS sensor that gives a nice sharp colour picture during the day. At night black and white image is assisted by the night vision IR LEDs in the camera. With a 150 degree lens it will show the full width of the van and the ball of the camera has some limited adjustment to optimise the view.

The camera is supplied with a short fly lead going to a 4 pin aviation connector. You can select a suitable extension cable length using the drop down menu. If using with an aftermarket head unit there is also a drop down menu to select a 4 pin to RCA adaptor.

Specification of camera
  • Sensor:- 1/3 Modern CMOS
  • TV lines:- 700
  • Lens:- 1.7mm
  • Min illumination:- 0 Lux (LED on)
  • IR leds:- 6
  • Night vision distance:- 35ft
  • Waterproof rating:- IP68
  • Viewing angle:- 150 degrees
  • Power voltage:- 12V
  • Operation temperature:- -20 C to + 70C
  • Microphone:- On some models depending on batch. Email to confirm if needed.
Model
CAM404
Bar Code
5060342256317
Vehicle
Van
Voltage
12 volt
Connector type
4 pin aviation
TVL
700 TVL
Special features
6 IR LEDs for night vision
Type of sensor
CMOS
Sensor size
1/3" sensor
Camera angle
120 degrees
