7 inch clip on AHD mirror monitor and bracket reversing camera
7 inch clip on AHD mirror monitor and bracket reversing camera
7 inch clip on AHD mirror monitor and bracket reversing camera

7 inch clip on AHD mirror monitor and bracket reversing camera

£197.00
(Inc. 20% VAT)
(£164.17 Exc. VAT)
+
Weight
2.10 kg
Introduction to product

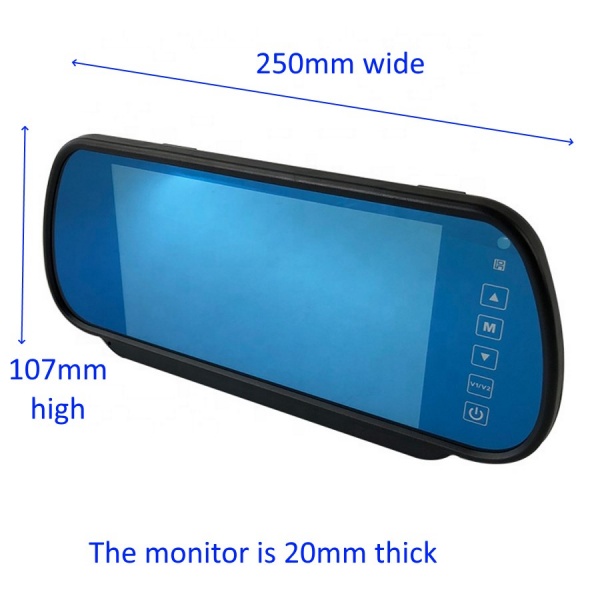

7 inch clip on mirror AHD monitor and bracket reversing camera. The mirror monitor is a popular option and matched with the bracket camera is gives a good image day or night. It is suited to vans and some heavy goods vehicles. The high brightness LED panel gives a clear picture even under bright conditions. The camera has a painted stainless steel bracket. It has IR LEDs to help give a good black and white night image. During the day it gives a sharp colour image.

Specification of Camera

I

  • Image sensor and chips: FH8550M+C2398
  • Resolution: 1920*1080P (2 million pixels)
  • Night Vision: 850 / IR-CUT night vision
  • Wide Dynamic: Support (mobile frame rate 100DB)
  • SNR: >52DB (AGC OFF)
  • System: PAL
  • Image: Mirror image
  • Waterproof Level: IP68
  • Shockproof Level: 4G
  • Connectors: 4 Pin aviation
  • Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
  • Power Consumption: Approx 1.8W per camera
  • Video Output: 1080P
  • Working Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to 85°C
  • Stainless Steel Bracket (painted)
Specification of monitor
  • Screen Size : 7 inches diagonally measured
  • Aspect Ratio : 16:9
  • Resolution : 1024 (W) x RGB x 600 (H)
  • TV System : Auto
  • Brightness : 300cd / m2
  • Contrast : 400 : 1
  • Active Area : 154.08(w) x 85.92(h) mm
  • Viewing Angle : U/D : 40°/65°, R/L : 65°/65°
  • Video Format : AHD / CVBS
  • Mirror Flip : Non-mirror, mirror, flip, mirror flip
  • Video Channels : Two channel video input
  • Reverse Function : Single trigger (ruler setting function)
  • Power Supply : 12/24V DC, <6W
  • Operating Temperature : -20°C to +65°C
  • Storage Temperature : -25°C to +70°C
Model
M705AHDB
Vehicle
Van, motorhome, some lorries
Voltage
12/24 volt
Screen size
7" diagonal
Connector type
4 pin aviation
Special features
18 IR LEDs for night vision
Camera angle
120 degrees
