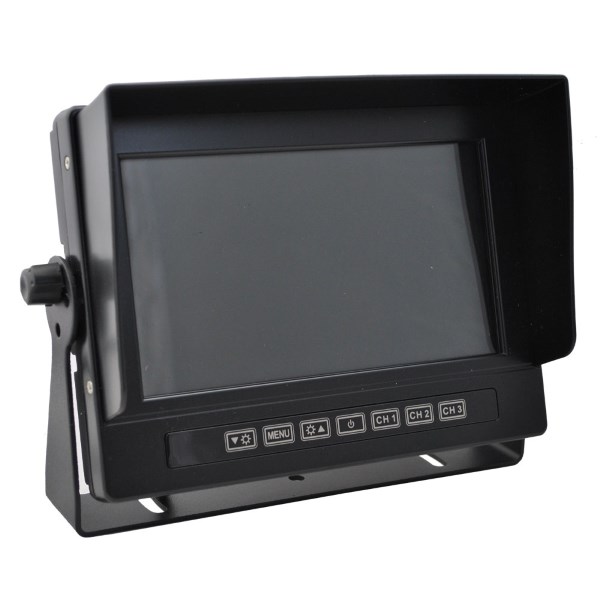

This is a colour waterproof rear view monitor. It shares the same electronics as our reliable MON705, but is IP68 rated. It has 3 AV inputs and a 800 x 480 pixel screen. It will work at 12 or 24V automatically adjusting to the applied voltage. It is compatible with all our reversing cameras with 4 pin connectors.
The monitor has a short lead going to a 13 pin plug and socket arrangement. This connector will need carefully taping to ensure it is waterproof. The power lead then runs down about 1.5m to where it splits out into red, black wires for power and 3 x 4 pin male aviation connectors for the cameras. Again if these are anywhere there is water they will need waterproofing if not in use. Those connected to a camera will be sealed against water by the connector. There are also 3 trigger wires, one for each camera to allow for auto switching. These can be left disconnected if this feature is not wanted.
