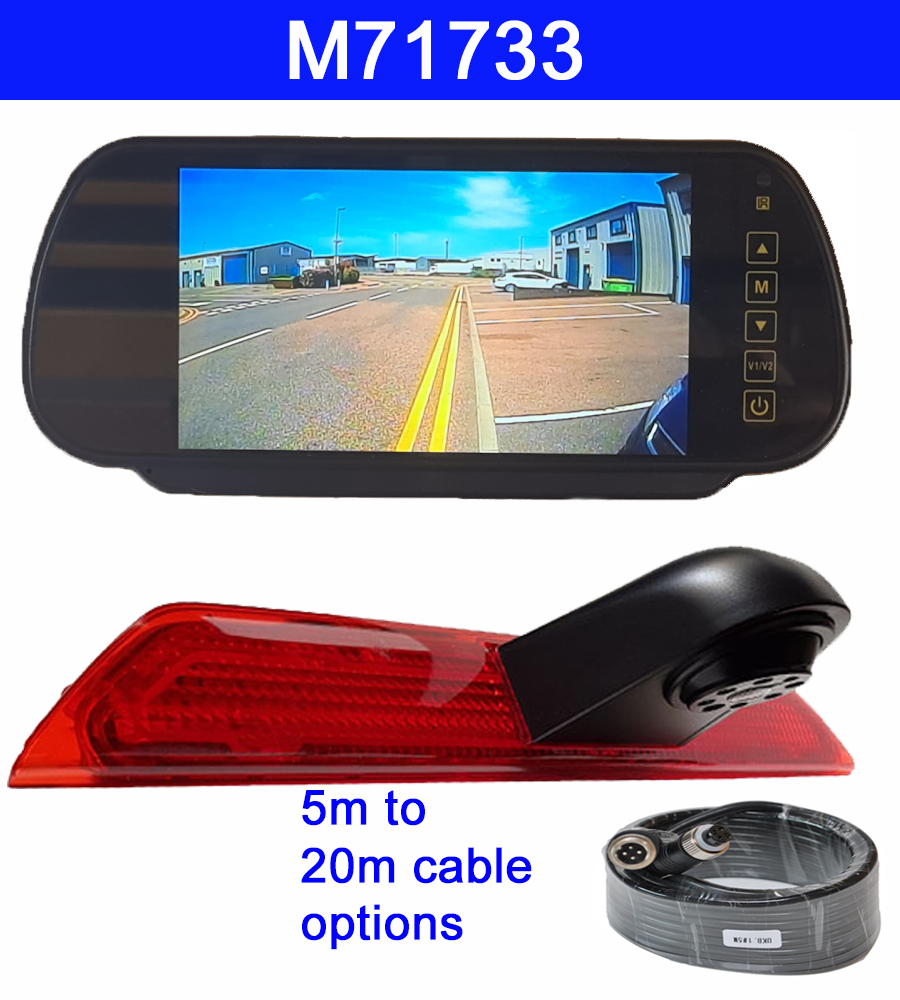

This matches a 700 TVL CMOS Ford Transit brake light reversing camera to our popular MON293 clip on mirror colour rear view monitor. The 700 TVL CMOS sensor in the camera gives a good clear image day or night. The system can be set up to come on automatically when reverse is selected. The mirror monitor is located in the position you would naturally look for what is behind you.
We do stock a mirror monitor with a metal bracket to fit the existing mounting plate on the windscreen. These are slightly more expensive and we prefer to see a picture of your existing mounting plate to be sure. We do find the odd vehicle that has a different mounting plate as to what you would expect.
On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.
5m 7.5m 10m 12.5m 15m 20m
These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.
10M 8mm link, 12.5M 8mm link, 15M 8mm link
These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.
Lighter plug
A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.
Bailey adaptor
We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.
Stand style bracket
This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.
Easy wire fuse tap a.k.a "piggyback fuse holders"
These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring. We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.
