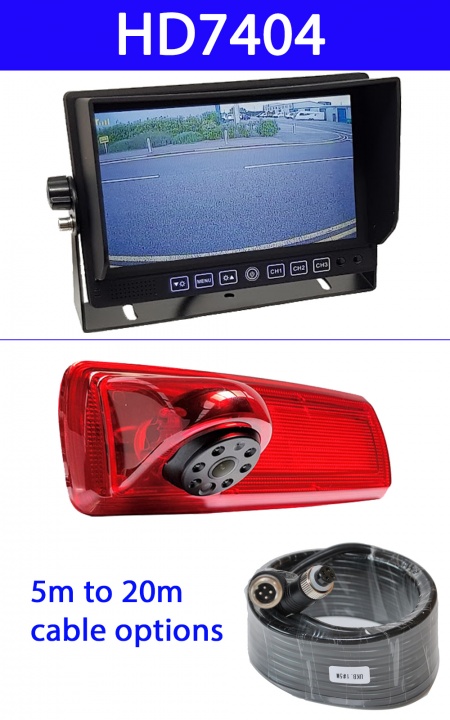

This matches a CCD Vauxhall Vivaro brake light rebersin camera to our popular MON509D colour rear view mirror monitor. The brake light cameras allow easy fitting without the need to drill holes into bodywork. They are wide angled to produce a view across the rear of the vehicle. The system can be set up to automatically come on when reverse gear is selected.
- Screen size:7 inch (diagonal length)
- Brand new LCD panel, high resolution
- [16 : 9 ] wide screen display
- 2 video inputs
- PAL & NTSC auto-switching
- Resolution:800 x R.G.B x 480 dots
- Power supply: DC 12 V/24V auto switching
- Remote control, OSD menu;
- 4 PIN connectors
- View angle range:(left/right) 65º (top) 40º (down) 15º
Supplied with quick release style bracket and a 8mm or locking DIN connector for easy removal of monitor.
On all of our reversing camera systems we have a wide variety of cable and power options. The information below shows you what each option means.
5m 7.5m 10m 12.5m 15m 20m
These are our standard 4 pin extension cables. These options allow you to select what length you need. They are listed in metres, to get the length in feet simply multiply by 3 to change. Having longer than you need will not affect the picture, any extra cable should be coiled loosely where it cannot get damaged.
10M 8mm link, 12.5M 8mm link, 15M 8mm link
These are our 12.5m or 15m cables with an 8mm link at the front of the cable - designed to disconnect to help running through any tight gaps, then reconnected at the end of the install once you are next to the monitor.
Lighter plug
A lighter plug is a useful aid to testing as system before you fit it. Some people will run their system off a lighter plug instead of hard wiring it in.
Bailey adaptor
We do an adaptor to fit the Waeco cables that are pre-installed in Bailey Motorhomes. It converts their cable into our standard 4 pin ones. We have single camera and dual camera versions.
Stand style bracket
This is useful on our HD series of monitors where a curved dash makes mounting the U-bracket difficult. It also makes it faster and easier to remove the monitor.
Easy wire fuse tap a.k.a "piggyback fuse holders"
These can be used to take power from the fuse board. The earth should be to a point where there is bare metal to the vehicle body. The cable is about 2M long and terminates in a 2.1mm/5.5mm power plug, which fits in to the corresponding socket on the monitor wiring. We stock these in different blade sizes, please select the type of fuse tap that is fitted to your fusebox.
