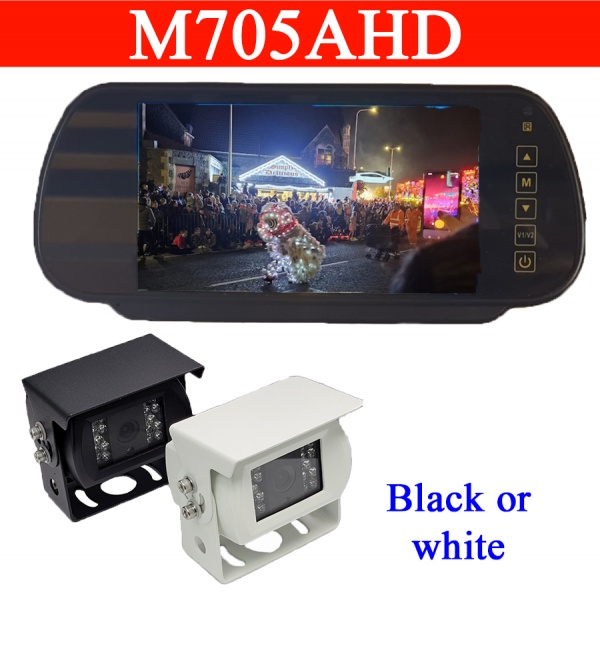

7 inch AHD Clip on mirror monitor and twin lens reversing camera. The clip on mirror monitor and twin lens camera is extremely popular for motorhomes and vans. The down facing camera is used for reversing and the narrower upward facing camera for an always on rear view. The AHD version benefits from a higher brightness screen that make reflections in the glass less distracting. The kit is supplied with 2 separate cables as we have found single cables give issues with cross talk between the signals.
Image sensor and chips: FH8550M+C2398
Resolution: 1920*1080P (2 million pixels)
Night Vision: Yes
Wide Dynamic: Support (mobile frame rate 100DB)
SNR: >52DB (AGC OFF)
System: PAL
Image: Mirror image
Waterproof Level: IP68
Shockproof Level: 4G
Connectors: 4 Pin aviation
Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
Power Consumption: Approx 1.8W per camera
Video Output: 1080P
Working Temperature: -20°C to +70°C
Storage Temperature: -30°C to 85°C
Stainless Steel Bracket (painted)
Built-in Lens: 3.6mm / 8.0mm
We use more than one source for these cameras at the moment. The specifications may change.
